 Post subject: TC15 240V hookup
PostPosted: Mon Jun 24, 2019 2:28 pm
Offline

Joined: Sun Mar 31, 2019 1:42 am
Posts: 6
Hi,

In the builder's guide section about the 240V hook up, it says to run a wire from the tag where the black and red-white trany leads are connected, to the pilot light. BUT this is NOT drawn in the accompanying layout pic, AND looking at the schematics, doesn't make any sense to me. Kindly advise a poor noob who has only built one amp previously. Thanx.
Top
 Profile

mitch m
 Post subject: Re: TC15 240V hookup
PostPosted: Mon Jun 24, 2019 5:18 pm
Offline
Expert
Expert

Joined: Sat Dec 04, 2010 3:42 pm
Posts: 519
Location: Qualicum Beach, BC
Yes, it looks like the 240-volt layout in the builder's guide isn't quite right.

The 240-volt schematic in the builder's guide is OK. The white wire from the pilot light should connect to the tag block where the white/red and black wires from the transformer join. It should not go to neutral as shown in the layout.

If wired as shown in the layout, the pilot light would get 240 volts and it wouldn't last too long!
Top
 Profile

AnalogOpher
 Post subject: Re: TC15 240V hookup
PostPosted: Tue Jun 25, 2019 1:02 pm
Offline

Joined: Sun Mar 31, 2019 1:42 am
Posts: 6
Thanx!
Top
 Profile

coco
 Post subject: Re: TC15 240V hookup
PostPosted: Tue Jun 25, 2019 1:56 pm
Offline
Holy Ghost
Holy Ghost
User avatar

Joined: Sun Mar 13, 2005 4:10 pm
Posts: 7519
Location: Canada

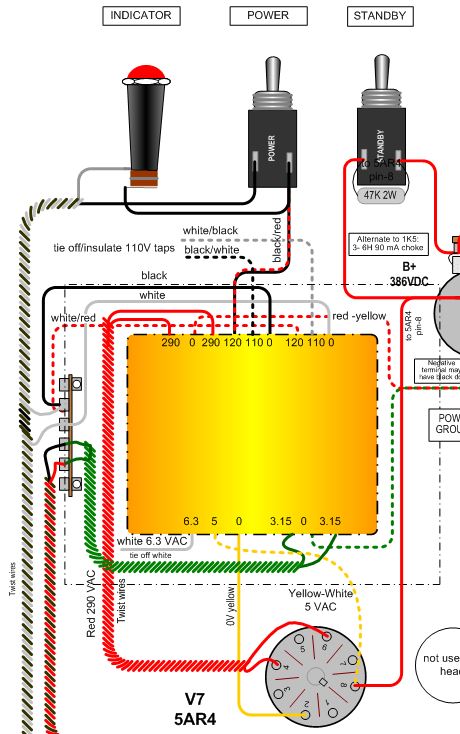

Yes, it is wrong and it has been corrected.

Attachment:
TC15_240VHookUp.JPG [ 79.96 KiB | Viewed 6044 times ]

_________________
Stephen
Web: www.trinityamps.com. Facebook: facebook.com/trinityamps. Twitter: @trinityamps
Top
 Profile

AnalogOpher
 Post subject: Re: TC15 240V hookup
PostPosted: Wed Jun 26, 2019 7:09 am
Offline

Joined: Sun Mar 31, 2019 1:42 am
Posts: 6
Thanx Stephen!
