 Post subject: Resistor Offset
PostPosted: Tue Jan 11, 2022 10:40 pm
Offline

Joined: Tue Jan 11, 2022 10:33 pm
Posts: 4

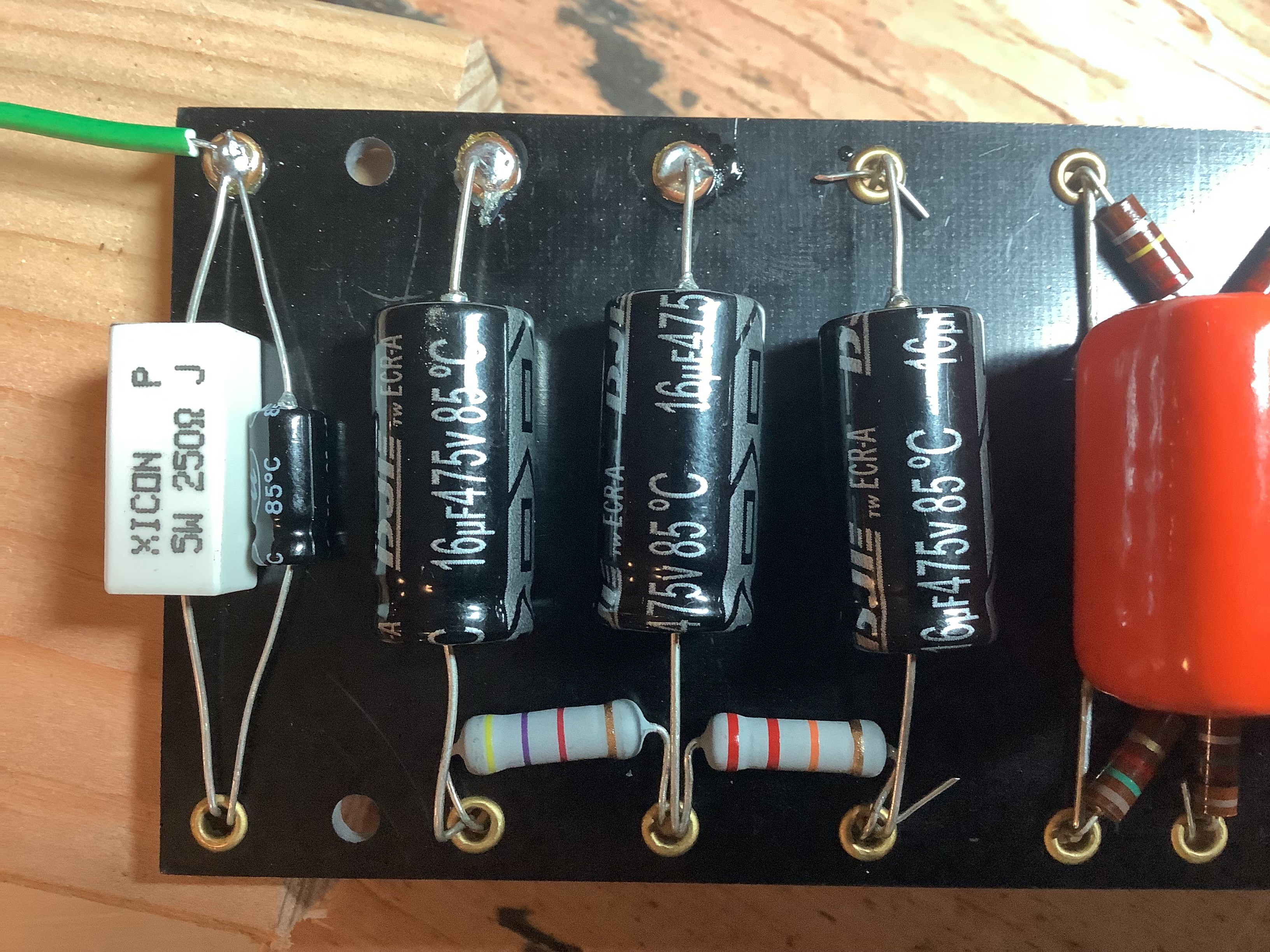

The board is rather cramped at the 4.7K and 22K resistors. I'm a little bit worried about getting my soldering iron in there to solder the eyelet. Is it acceptable to physically offset the resistors to provide more room at the eyelet (see the attached picture). There is vertical separation between the resistor and capacitor leads.
Thanks!


Attachments:
Resistor Offset.jpg
Resistor Offset.jpg [ 2.13 MiB | Viewed 3916 times ]
Top
 Profile

 Post subject: Re: Resistor Offset
PostPosted: Thu Jan 20, 2022 4:33 am
Offline
Expert
Expert

Joined: Sat Dec 04, 2010 3:42 pm
Posts: 519
Location: Qualicum Beach, BC
Looks good. You can mount the resistors that way if it makes assembly easier for you. But there is actually enough room to mount the resistors between the eyelets. You just have to bend the leads close to the resistor bodies. Then you can solder the eyelet from the bottom like a PC board.

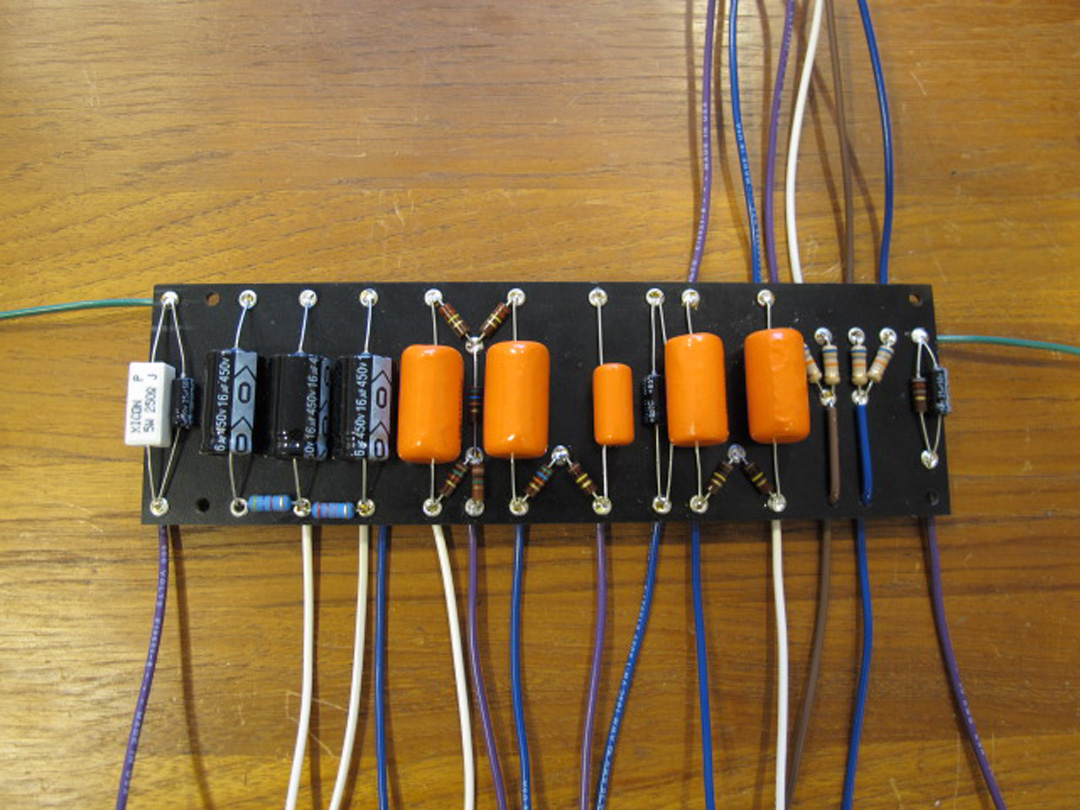

Attachment:
BoardTop.jpg [ 299.39 KiB | Viewed 3846 times ]


Top
 Profile

 Post subject: Re: Resistor Offset
PostPosted: Thu Jan 20, 2022 12:01 pm
Offline

Joined: Tue Jan 11, 2022 10:33 pm
Posts: 4
Thanks for the response. That makes sense.
