hi there, was wondering if one of you knows where i could find a schematic involving one 12ax7pre, one 6aq5power and one 6x4 rectifier.
i found a cool little amp in my stock of old thingies and i would really like to make a little minimalist living room amp out of it, think it was a phono amp back in its days....im thinking, one volume and one tone.
heres some pics of it, its pretty old







maybe some of you might get an idea what to do with it
i was thinking about some kind of champ derivative, the less parts involved the better, power transf is good, got bout 325v and only 6.2v heater circuit(ok with 6x4 me think)....also, i cant figure out how what is the impedance of the OT, so i can choose speaker accordingly

btw, sorry for hijacking that tread, i figured it was the best place for a little SE infos

ok, i looked at schematics all nite long(im a night guy) and the only thing keeping me from going forward is the 6v6/6aq5 pinout wiring, cant seem to figure it out. and the values of caps that would go with it....
at least i think i could get by without using the old capcan, wich is a good thing as i plan to build another chassis even smaller, sort of a micro amp

i think i grasped how to wire the recto too.
damnit, i almost lost interrest in building pedals since getting in thoses forums, amps are much more tone worty addiction

How big of an ass should I be looking for? Here are the specs for 4 possible OTs:

Allen

T010B
2.5k --> 2/4/8 ohms
5k ----> 4/8/16 ohms
60mA

T011c
4k --> 4/8 ohms
8k --> 8/16 ohms
95mA

Musical Power Supplies

OT10SE
2.5k/3.5k --> 2/4/8 ohms
5k/7k ------> 4/8/16 ohms
60mA

OT20SE
2.3k/3k --> 4/8/16 ohms
4.6k/6k --> 8/16/32 ohms
90mA

The way (I think) I understand it, the primary impedance is a function of the pri/sec winding ratios and the speaker impedance.
A higher primary impedance reduces max output and clean headroom, lower impedance does the reverse. Too low, and the power tube gives it up in a showy, yet unsatisfying, fashion.

According to many Internet sources, a 6V6 likes a higher impedance than a 6L6...but, opinions vary widely as to the specifics.
In fact, a chart on Musical Power Supplies site indicates the opposite:
"6V6 Family 4500 Ohms 30 - 45mA"
"6L6 Family 5500 Ohms 40 - 54mA"
WHAT-da...???

So.....Assuming we have a single 6L6/6V6 SE amp with ~350v at the plate...

-What is an appropriate primary impedance range for a 6V6?
-What is an appropriate primary impedance range for a 6L6?
-Are there any tonal considerations between higher/lower impedance other than clean headroom?
-Is there any benefit to a 90mA rating vs. a 60mA rating?

Thanks for the help,

_________________
************
** b0b0 **
************

- This Space For Rent -

For SE & PP impedancdes check out this: viewtopic.php?p=6188#6188

5K is about right.

10 Watt minimum would be my recommendation for good bass response. The OT10SE 5k/7k for 1 6V6 or OT20SE 4.6k/6k for 1 6L6 looks promising.

_________________
Stephen
Web: www.trinityamps.com. Facebook: facebook.com/trinityamps. Twitter: @trinityamps

Here's a good possibility for the faceplate....



I did this in CorelDRAW.

_________________
************
** b0b0 **
************

- This Space For Rent -

Cool! Would be nice to have the chimp in reverse video - white chimp on black background. But, I'm no artiste!

_________________
Stephen
Web: www.trinityamps.com. Facebook: facebook.com/trinityamps. Twitter: @trinityamps

I like the Hammond 125ESE for single-ended amps. It's a nice and beefy OT, with strong low end, and is good for up to 20W. The 125DSE is also pretty good.

Around 300V -350V DC is about right for a small Class A SE amp running a 6V6 or 6L6 (or even an EL34) tube. You don't really want to go much higher than that.

Just build it into a regular Tweed Champ or Tweed Princeton. You can follow their schematics pretty closely, using the transformers you have there. The one thing that will be different is the power tube's cathode resistor. So use the same value resistor as your amp has right now. For the OT, first test that it's OK. There's an article about OT testing on geofex.com. If you then *carefully* connect the OT primary to 120V AC supply, you can measure the voltages on the primary and secondary, which will give you the turns ratio. The impedance ratio is the square of the turns ratio. 6AQ5s typically run with a 5k primary load impedance. so the speaker impedance should be somewhere around 5k divided by the impedance ratio.

_________________
Great tones come in small glass jars!

Bobo and others, I hate to introduce a little "shameless commerce" here - but in an effort to possibly help a brother builder, I have a brand new Hammond 125ESE such as Zaphod recommends. I abandoned a single-ended project about a year ago and would be happy to sell this a bit below the best price you can find from a vendor. No sense in letting it just sit on the shelf...

Jim

...it actually works.....

I finally dusted off the soldering iron and pounded the Chimp into submission. Initial tubeless power-up produced no smoke or sparks, so I put in some sacrificial tubes and lit it up. Still no fireworks!! As I had suspected, the voltages came out a bit higher than I would like, but they're pretty close to what's present in a Champ....so I went ahead and brought the MV and gain up. The only real surprises were that it fired right up and that I only burnt myself once! It's definitely a little gain-monster. It starts threatening some high-pitched nastiness at about 75% gain, but all-in-all I'm VERY pleased with the initial results. I'm still gonna be tweaking it a bit to bring the B+ down before I put the good tubes in. Sure would like to put in a VRM, but there's very little available real estate....the chassis I used is only 6.5" x 12.5".

Many, many thanks to all who contributed with their expertise, moral support, and/or basic interest in the project.....expecially coco and zaphod (obviously), without whom......

It's been very gratifying to see the interest in the thread. Once the final tweaks are in place I'll update the schematic and layout.
Next project: TC-15

_________________
************
** b0b0 **
************

- This Space For Rent -

that's 1 angry chimp

The VRM only takes 1.5" sq foot print + the pot.

As for the voltages, put in a Zener on the B+ liek we did on the TRIWATT for the 6V6 selector. Works great.

_________________
Stephen
Web: www.trinityamps.com. Facebook: facebook.com/trinityamps. Twitter: @trinityamps

Would it work to put a Zener between the PT center tap and gnd?

_________________
************
** b0b0 **
************

- This Space For Rent -

No the zener goes on the B+ rail. For this amp I would suggest using 5W zener. See the TRIWATT schematic for ideas

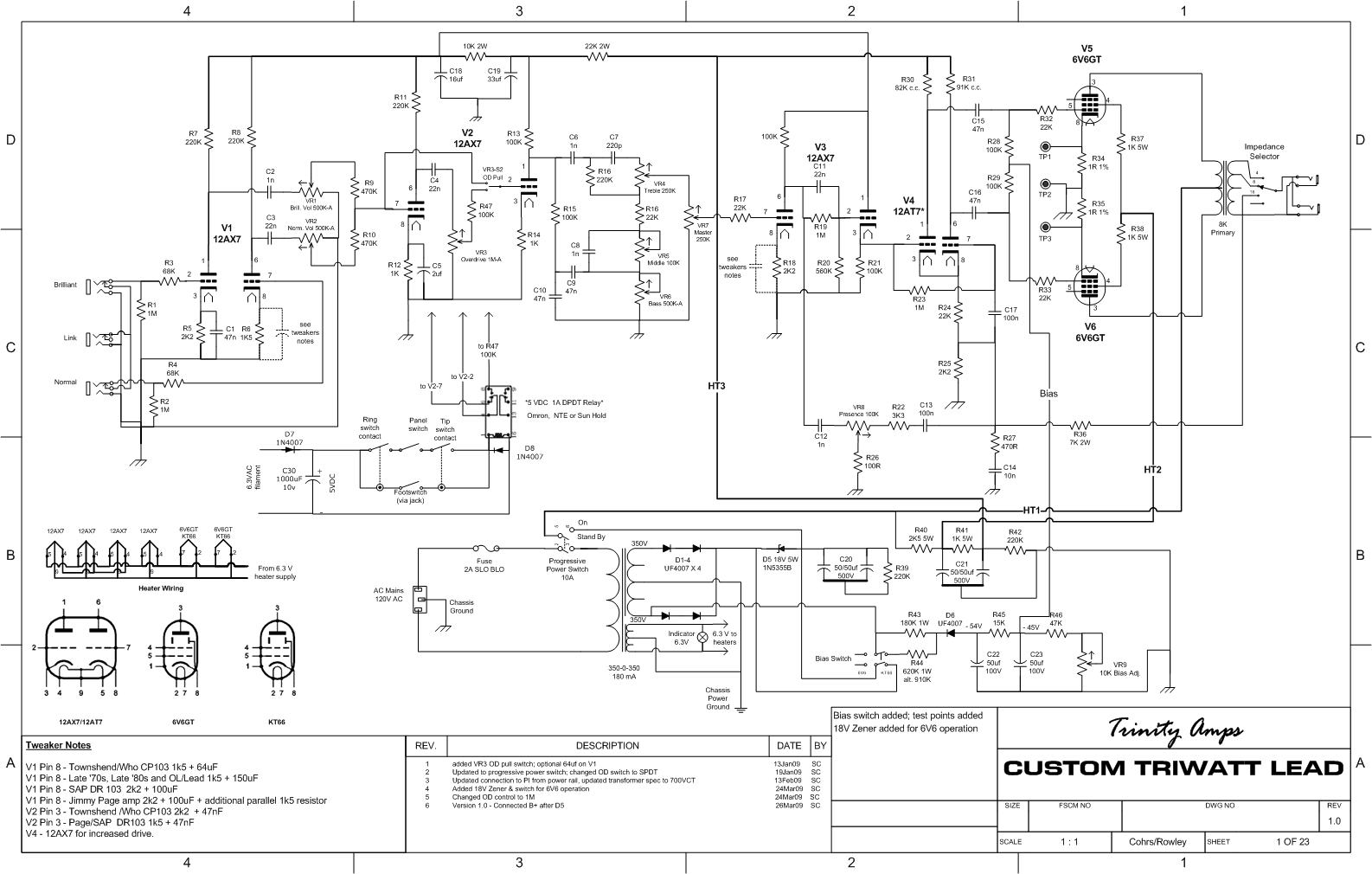

http://www.trinityamps.com/ForumGallery/trinity/triwatt/TRIWATT_v1_schematic.jpg

_________________
Stephen
Web: www.trinityamps.com. Facebook: facebook.com/trinityamps. Twitter: @trinityamps

Yah....I figured. I was just hoping I could avoid messing about with the board. My theory was that a properly oriented Zener on the CT would effectively reduce the voltage of the 1/2-wave pulses from the secondary leads.

_________________
************
** b0b0 **
************

- This Space For Rent -

Hello b0b0, can you send me the final schematic / layout so this thread will be complete, & I'll post them. Can't get to your links. click email button below

_________________
Stephen
Web: www.trinityamps.com. Facebook: facebook.com/trinityamps. Twitter: @trinityamps

Documents sent........sorry bout that, I killed off that web server & forgot about the schematics.

I wound up using a JAN Philips 5751 at V1, Tung Sol 12ax7 at V2, and a Tung Sol 5881 at V3 & it sounds very tough. Kind of a one-trick pony with stacked gain pots……dual or dual-concentric is somewhat more flexible. The single tone control actually works pretty well, but I don't seem to move very far either direction from center. I had a small chassis on-hand with room for 3 controls....which is what dictated the single tone and stacked gain pots.

*edit*
The original links should be working again. These will get you to the most recent versions:
http://burntmonkey.net/chimp/ChimpSchem1_1.jpg
http://burntmonkey.net/chimp/ChimpLayout1_1.jpg
http://burntmonkey.net/chimp/ChimpReverse1_1.jpg

_________________
************
** b0b0 **
************

- This Space For Rent -

Links aren't working

hrmmm.....I've tried a couple different computers & the links work fine for me. Could someone else give it a try please?

_________________
************
** b0b0 **
************

- This Space For Rent -

Hokay.......the idiot sysadmin (who shall remain nameless, but whose username may rhyme with shm0b0) blew the firewall config. Links should be good now.

sorry

_________________
************
** b0b0 **
************

- This Space For Rent -
