ineedguitars
PostPosted: Thu Feb 19, 2009 8:53 am
Offline

Joined: Wed Dec 31, 2008 3:43 pm
Posts: 4
Location: North Georgia
All;

Thanks for taking a look at my first build, a Plexi - V6 kit. I have some past experience building ham radio gear from Heathkit in the 70's and 80's but they all came with detailed instructions. Please have a look and see if I have made any mistakes so far. I only have the input leads to finish up. It would be very helpful to take care of any flaws before I put the power to it. Thanks, Tom

PS: I have to post a topic before I can upload the photos so they will be forthcoming.
Top
 Profile

ineedguitars
 Post subject:
PostPosted: Thu Feb 19, 2009 8:53 am
Offline

Joined: Wed Dec 31, 2008 3:43 pm
Posts: 4
Location: North Georgia

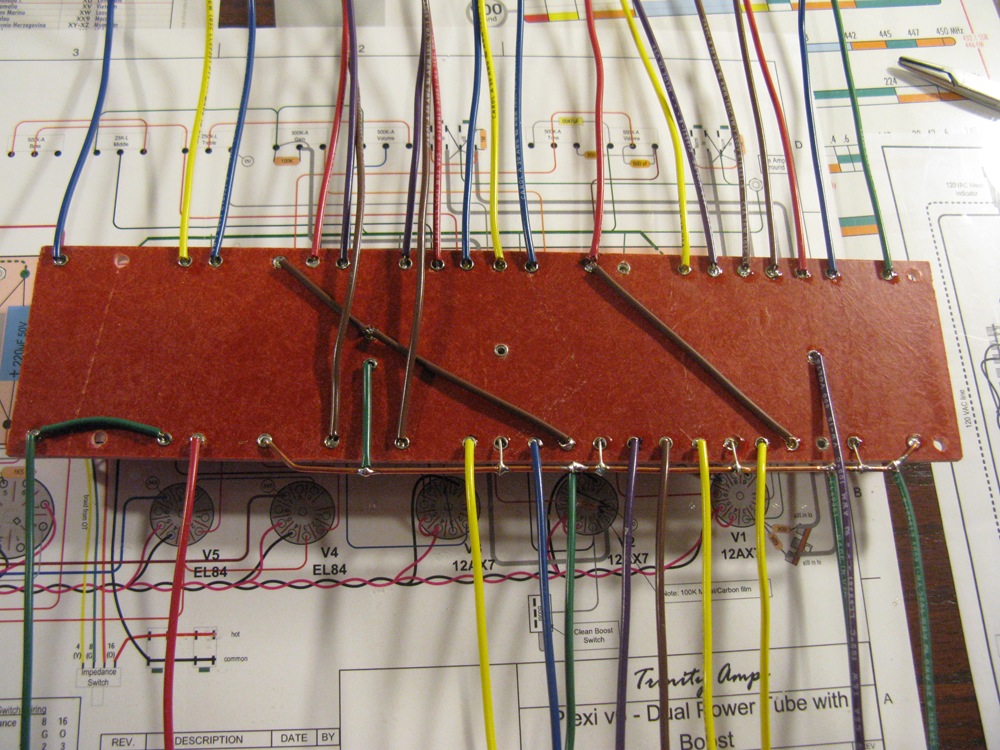

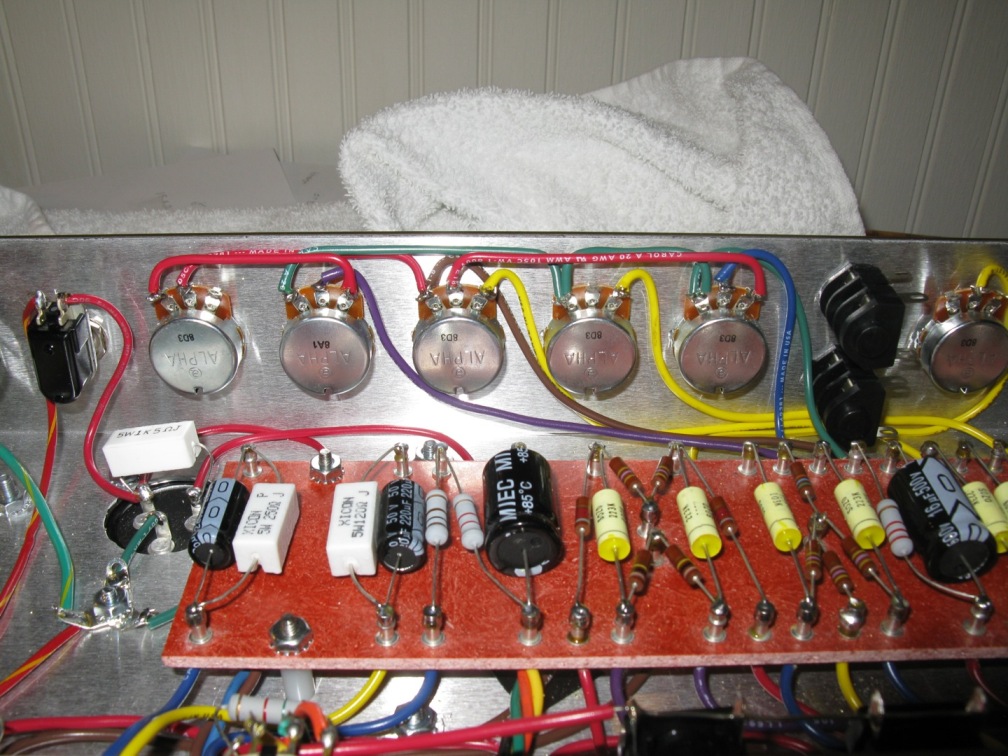

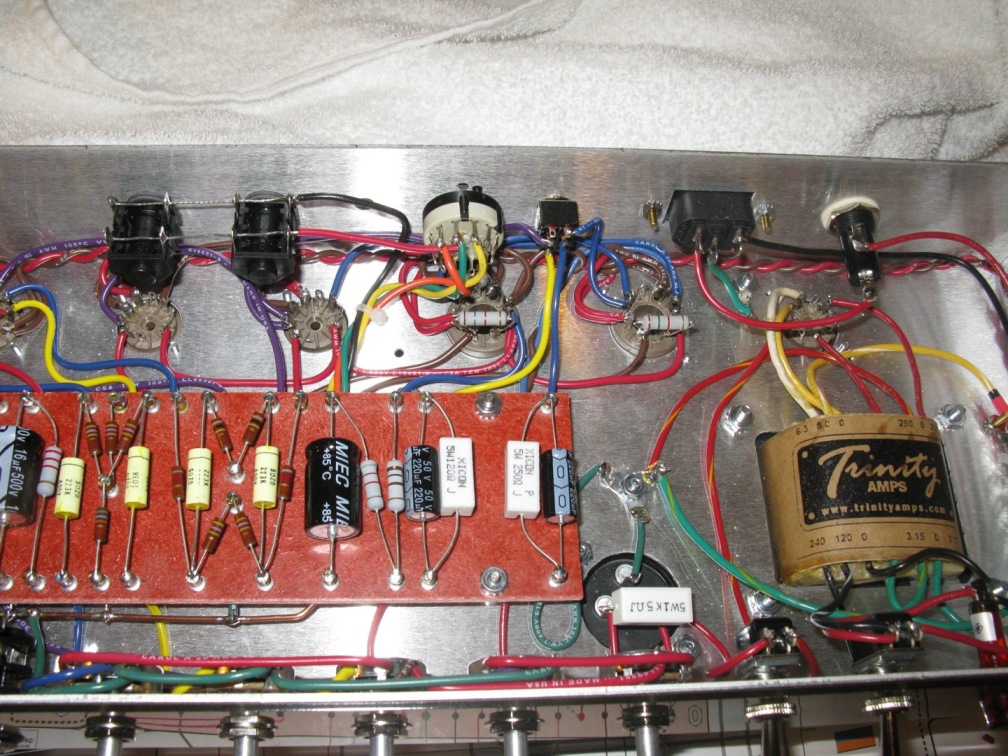

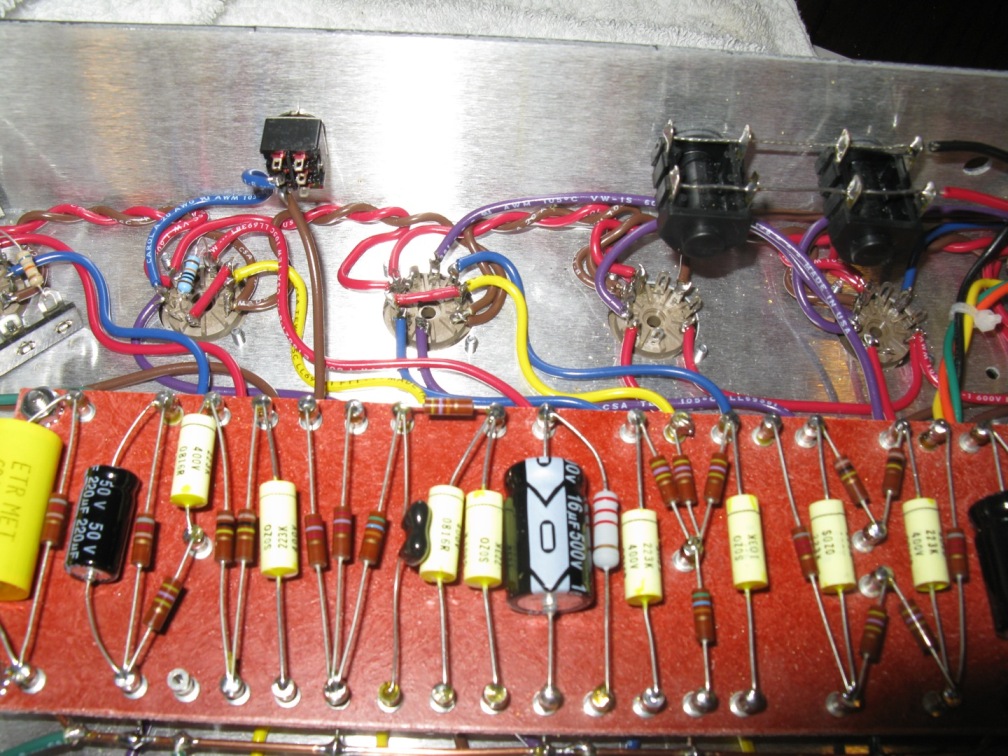

Here are the photos:




Top
 Profile

coco
 Post subject:
PostPosted: Thu Feb 19, 2009 3:41 pm
Offline
Holy Ghost
Holy Ghost
User avatar

Joined: Sun Mar 13, 2005 4:10 pm
Posts: 7519
Location: Canada
check the values of the PI resistors. One should be 470 ohms. per plexi schematic

_________________
Stephen
Web: www.trinityamps.com. Facebook: facebook.com/trinityamps. Twitter: @trinityamps
Top
 Profile

zaphod
 Post subject:
PostPosted: Thu Feb 19, 2009 5:32 pm
Offline
Expert
Expert
User avatar

Joined: Sun May 20, 2007 1:45 pm
Posts: 1254
Location: YYZ
Yes, two 470ks, one 47k and one 470 ohms....

_________________
Great tones come in small glass jars!
Top
 Profile

ineedguitars
 Post subject:
PostPosted: Thu Feb 19, 2009 5:49 pm
Offline

Joined: Wed Dec 31, 2008 3:43 pm
Posts: 4
Location: North Georgia
Yes, I have that as R15 that is banked by two 470K's and a 56K at the top. Does that sound correct? Thanks, Tom
Top
 Profile

coco
 Post subject:
PostPosted: Thu Feb 19, 2009 8:45 pm
Offline
Holy Ghost
Holy Ghost
User avatar

Joined: Sun Mar 13, 2005 4:10 pm
Posts: 7519
Location: Canada
Yes, per the layout

_________________
Stephen
Web: www.trinityamps.com. Facebook: facebook.com/trinityamps. Twitter: @trinityamps
Top
 Profile

zaphod
 Post subject:
PostPosted: Thu Feb 19, 2009 9:25 pm
Offline
Expert
Expert
User avatar

Joined: Sun May 20, 2007 1:45 pm
Posts: 1254
Location: YYZ
Oh yes, I forgot the 47k is a 56k in some 18W amps. My bad... :oops:
