ajmckay

Post subject: Tweed With VRM

Posted: Mon May 05, 2014 11:47 pm

Friend

Joined: Mon Sep 17, 2012 10:06 pm
Posts: 49

Hi everyone...

Just picked up my second Kit this weekend and I am going through the build docs and reading everyone's builds with pictures...

I purchased the VRM kit to put into the build as well to make the neighbours happy.

In the VRM docs, it mentions to move the 1M input jack resistors to pins 2 and 7 on v1. But it does not mention if i should add a wire in its place...
I.e. on the high inputs do I leave an open circuit between the hot and the switch and a closed circuit from switch to ground?

Does this make the "Hi" and "Low" inputs the same? the 1M R1 and R4 will be used for both inputs?

Thanks for any help....

My soldering iron is getting itchy...

Top

coco

Post subject: Re: Tweed With VRM

Posted: Tue May 06, 2014 12:00 pm

Holy Ghost

Joined: Sun Mar 13, 2005 4:10 pm
Posts: 7519
Location: Canada

You don't need any extra jumper there. Just move the 1M over and it will do its thing in the new location.

_________________
Stephen
Web: www.trinityamps.com. Facebook: facebook.com/trinityamps. Twitter: @trinityamps

Top

ajmckay

Post subject: Re: Tweed With VRM

Posted: Tue May 06, 2014 10:32 pm

Friend

Joined: Mon Sep 17, 2012 10:06 pm
Posts: 49

coco wrote:

You don't need any extra jumper there. Just move the 1M over and it will do its thing in the new location.

Thanks for the quick response...

For the Hi Inputs, the Switch is still connected to ground and then to the input ground star still?
Or is it just the ground connected to the input ground start.

Heaters are wired up and the PT is wired to the point where I need to finish building the VRM Switch before finishing the Power Section...

The second time around is a lot easier.....

Andrew

Top

coco

Post subject: Re: Tweed With VRM

Posted: Tue May 06, 2014 10:52 pm

Holy Ghost

Joined: Sun Mar 13, 2005 4:10 pm
Posts: 7519
Location: Canada

Wired the same as the layout just move the 1M resistor.

_________________
Stephen
Web: www.trinityamps.com. Facebook: facebook.com/trinityamps. Twitter: @trinityamps

Top

ajmckay

Post subject: Re: Tweed With VRM

Posted: Thu May 15, 2014 7:51 pm

Friend

Joined: Mon Sep 17, 2012 10:06 pm
Posts: 49

Well my Tweed is complete.
I did a double check of my wiring and found no errors, so decided to power it up and check it out...
Sound check went well and I am impressed...

Here are my voltages.
V1 Pin 6 121.3 (130)
V1 Pin 1 120.7 (130)

V2 Pin 3 1.2 (1.4)
V2 Pin 1 155.5 (158)
V2 Pin 6 197 (204)
V2 Pin 7 15.1 (18)
V2 Pin 8 44 (50)

V3 Pin 4 322 (348)
V4 Pin 4 322 (348)

V3 Pin 8 19.7 (20)
V4 Pin 8 19.7 (20)

Forgot to measure V1 Pin 8 & 3, V3 Pin 3 and the voltages on V5 with the VRM.

Pictures to follow...

Top

ajmckay

Post subject: Re: Tweed With VRM

Posted: Thu May 15, 2014 7:56 pm

Friend

Joined: Mon Sep 17, 2012 10:06 pm
Posts: 49

Original Parts :

Attachment:

DSCF0040.JPG [ 2.18 MiB | Viewed 16896 times ]

Attachment:

DSCF0041.JPG [ 2.19 MiB | Viewed 16896 times ]

Attachment:

DSCF0042.JPG [ 2.18 MiB | Viewed 16896 times ]

Attachment:

DSCF0043.JPG [ 2.19 MiB | Viewed 16896 times ]

Top

ajmckay

Post subject: Re: Tweed With VRM

Posted: Thu May 15, 2014 8:01 pm

Friend

Joined: Mon Sep 17, 2012 10:06 pm
Posts: 49

Layout parts on drawing to verify inventory.

Attachment:

DSCF0044.JPG [ 2.15 MiB | Viewed 16896 times ]

Attachment:

DSCF0045.JPG [ 2.09 MiB | Viewed 16896 times ]

Install the hardware :

Attachment:

DSCF0046.JPG [ 2.2 MiB | Viewed 16896 times ]

Attachment:

DSCF0047.JPG [ 2.2 MiB | Viewed 16896 times ]

Top

ajmckay

Post subject: Re: Tweed With VRM

Posted: Thu May 15, 2014 8:08 pm

Friend

Joined: Mon Sep 17, 2012 10:06 pm
Posts: 49

Solder up the VRM :

Attachment:

DSCF0049.JPG [ 2.12 MiB | Viewed 16896 times ]

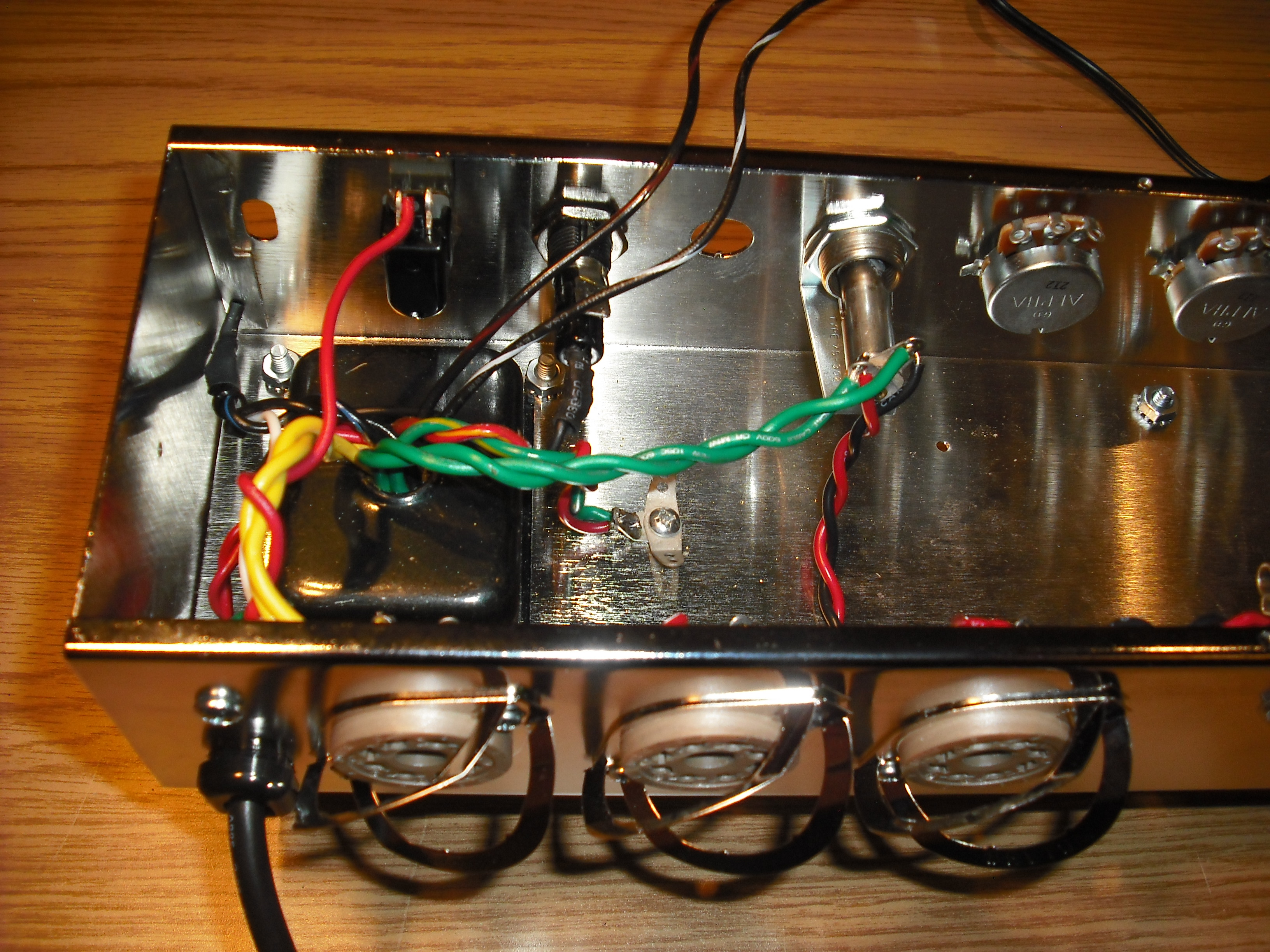

Wire up the PT and the Tube Heaters :

Attachment:

DSCF0050.JPG [ 2.16 MiB | Viewed 16896 times ]

Attachment:

DSCF0051.JPG [ 2.15 MiB | Viewed 16896 times ]

Attachment:

DSCF0052.JPG [ 2.17 MiB | Viewed 16896 times ]

Attachment:

DSCF0053.JPG [ 2.16 MiB | Viewed 16896 times ]

Top

ajmckay

Post subject: Re: Tweed With VRM

Posted: Thu May 15, 2014 8:13 pm

Friend

Joined: Mon Sep 17, 2012 10:06 pm
Posts: 49

Build up the Board and Fly Wires :

Attachment:

DSCF0056.JPG [ 2.19 MiB | Viewed 16896 times ]

Attachment:

DSCF0057.JPG [ 2.13 MiB | Viewed 16896 times ]

Attachment:

DSCF0058.JPG [ 2.18 MiB | Viewed 16896 times ]

Attachment:

DSCF0059.JPG [ 2.17 MiB | Viewed 16896 times ]

Top

ajmckay

Post subject: Re: Tweed With VRM

Posted: Thu May 15, 2014 8:18 pm

Friend

Joined: Mon Sep 17, 2012 10:06 pm
Posts: 49

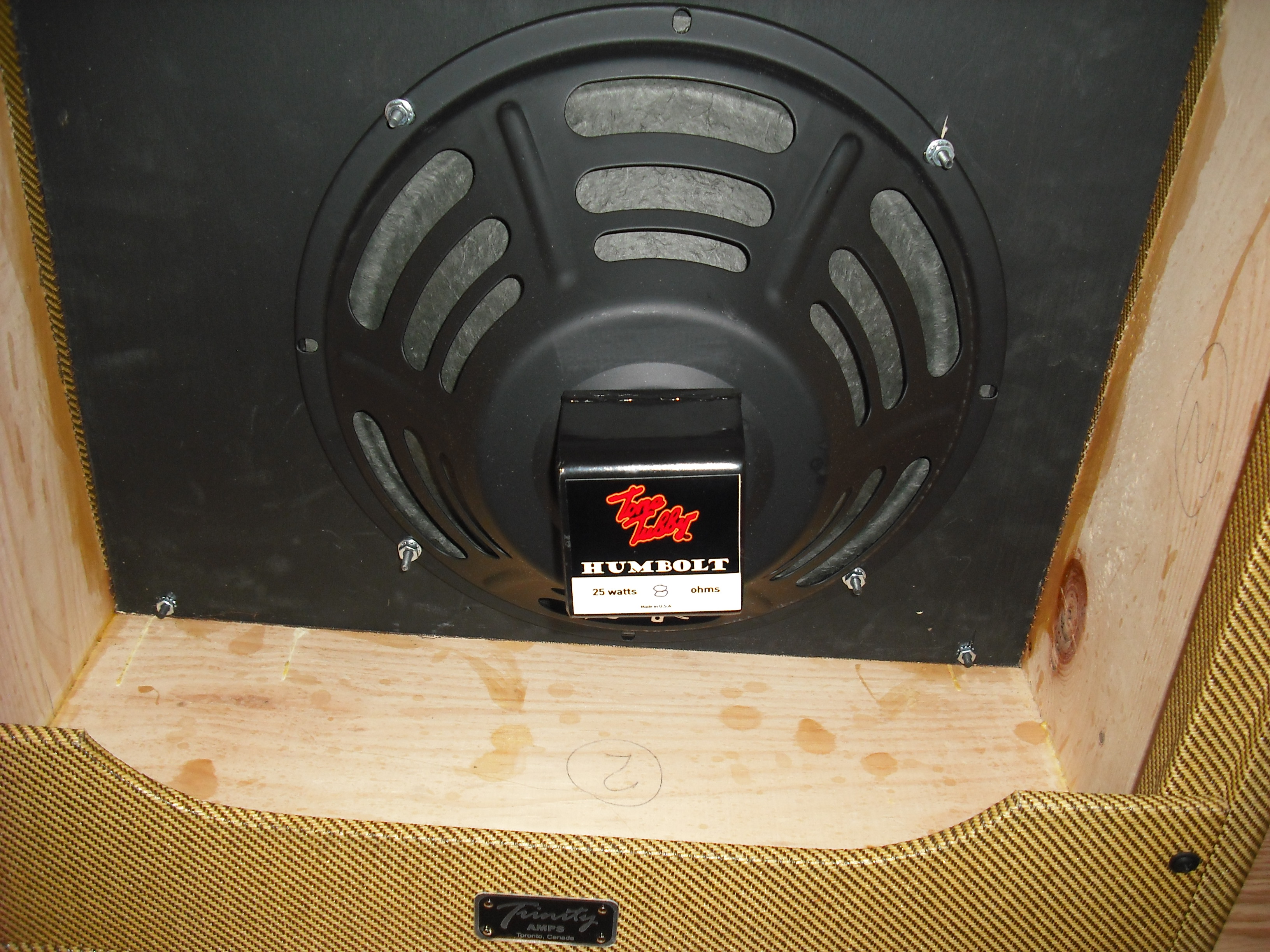

Install Speaker :

Attachment:

DSCF0060.JPG [ 2.18 MiB | Viewed 16896 times ]

Wire Up OT 4/8 SPDT Switch :

Attachment:

DSCF0061.JPG [ 2.18 MiB | Viewed 16896 times ]

Attachment:

DSCF0062.JPG [ 2.16 MiB | Viewed 16896 times ]

Attachment:

DSCF0063.JPG [ 2.24 MiB | Viewed 16896 times ]

Top

ajmckay

Post subject: Re: Tweed With VRM

Posted: Thu May 15, 2014 8:31 pm

Friend

Joined: Mon Sep 17, 2012 10:06 pm
Posts: 49

Fit Board into Case and wire up pots :

Attachment:

DSCF0065.JPG [ 2.17 MiB | Viewed 16895 times ]

Install controls and braid OT wires :

Attachment:

DSCF0069.JPG [ 2.18 MiB | Viewed 16895 times ]

Attach the Fly Wires :

Attachment:

DSCF0071.JPG [ 2.18 MiB | Viewed 16895 times ]

Attachment:

DSCF0072.JPG [ 2.2 MiB | Viewed 16895 times ]

Attachment:

DSCF0073.JPG [ 2.16 MiB | Viewed 16895 times ]

Input Jacks :

Attachment:

DSCF0074.JPG [ 2 MiB | Viewed 16895 times ]

V1 :

Attachment:

DSCF0076.JPG [ 2.2 MiB | Viewed 16895 times ]

V2 :

Attachment:

DSCF0077.JPG [ 2.18 MiB | Viewed 16895 times ]

V3 & V4 :

Attachment:

DSCF0078.JPG [ 2.09 MiB | Viewed 16895 times ]

V5 : (NOTE - i and the red wire on the wrong pin and found out during my final inspection before power up - i am not sure if this would have caused any issues or not...

Attachment:

DSCF0079.JPG [ 2.04 MiB | Viewed 16895 times ]

Top

ajmckay

Post subject: Re: Tweed With VRM

Posted: Thu May 15, 2014 8:34 pm

Friend

Joined: Mon Sep 17, 2012 10:06 pm
Posts: 49

Install in cabinet :

Attachment:

DSCF0080.JPG [ 2.21 MiB | Viewed 16895 times ]

Attachment:

DSCF0081.JPG [ 2.19 MiB | Viewed 16895 times ]

Attachment:

DSCF0082.JPG [ 2.17 MiB | Viewed 16895 times ]

Top

ajmckay

Post subject: Re: Tweed With VRM

Posted: Thu May 15, 2014 8:38 pm

Friend

Joined: Mon Sep 17, 2012 10:06 pm
Posts: 49

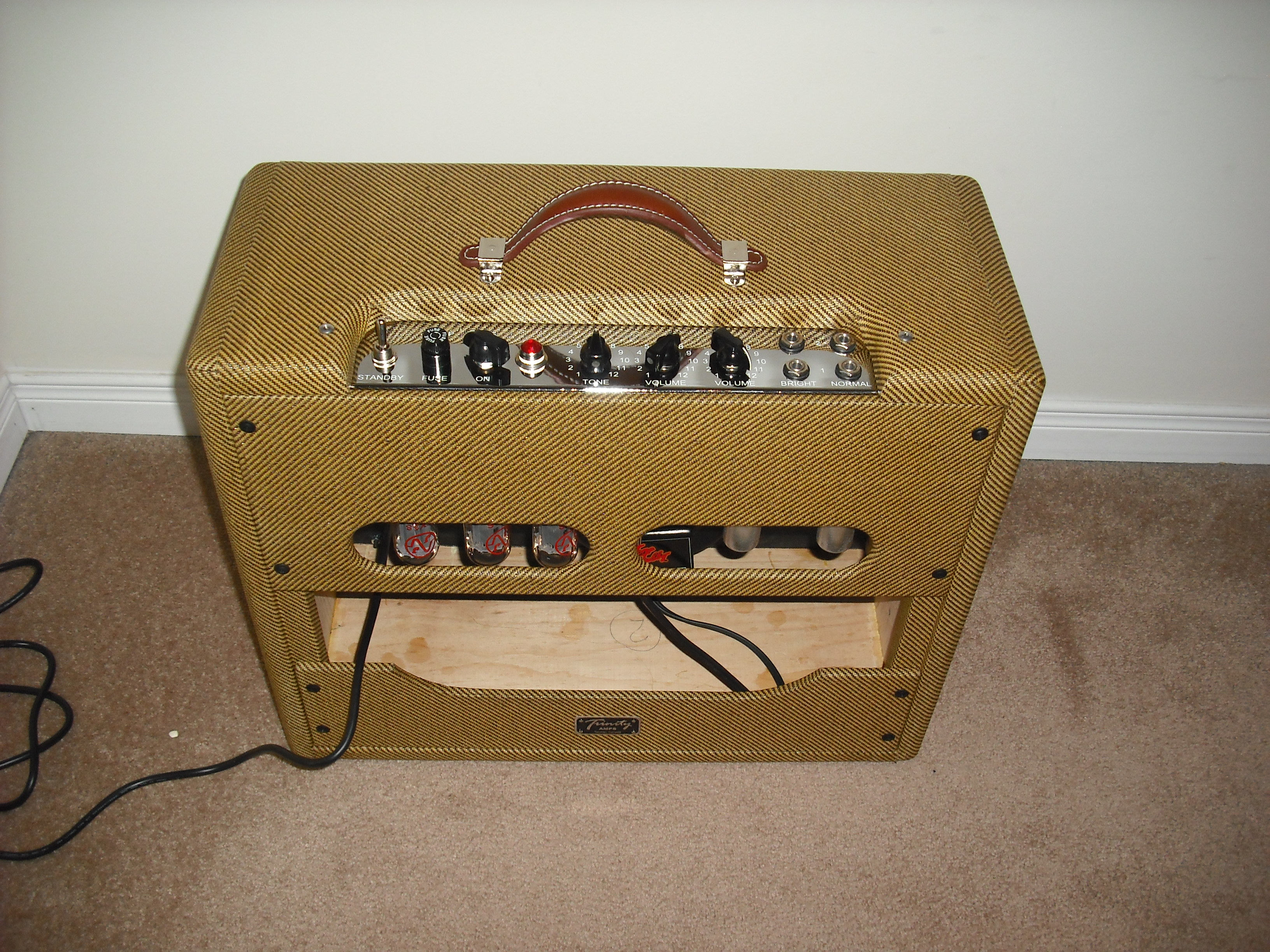

Final Pictures :

Attachment:

DSCF0085.JPG [ 2.19 MiB | Viewed 16894 times ]

Attachment:

DSCF0088.JPG [ 2.19 MiB | Viewed 16894 times ]

Attachment:

DSCF0086.JPG [ 2.21 MiB | Viewed 16894 times ]

Attachment:

DSCF0087.JPG [ 2.21 MiB | Viewed 16894 times ]

Top

coco

Post subject: Re: Tweed With VRM

Posted: Thu May 15, 2014 9:19 pm

Holy Ghost

Joined: Sun Mar 13, 2005 4:10 pm
Posts: 7519
Location: Canada

Nicely built. Looks great . How about that Tone Tubby Low Watt speaker, impressions?

_________________
Stephen
Web: www.trinityamps.com. Facebook: facebook.com/trinityamps. Twitter: @trinityamps

Top

ajmckay

Post subject: Re: Tweed With VRM

Posted: Thu May 15, 2014 10:44 pm

Friend

Joined: Mon Sep 17, 2012 10:06 pm
Posts: 49

I am very impressed with the speaker and Connie is really happy with the VRM...

Top
