Can you believe some people get tired of seeing another tweed cabinet built
awful in red..


Last edited by Ernie R on Sat Apr 28, 2012 2:24 am, edited 3 times in total.

Top
 Profile

duhvoodooman
PostPosted: Fri Jan 27, 2012 5:19 pm
Offline
Friend
Friend
User avatar

Joined: Fri Oct 15, 2010 11:54 am
Posts: 13
Whoa! Stupefying!! :thumbsup: :thumbsup: :thumbsup:
Top
 Profile

joeyvelour
PostPosted: Sun Jan 29, 2012 4:31 pm
Offline
Experienced
Experienced

Joined: Fri Mar 14, 2008 12:05 pm
Posts: 432
Location: Massachusetts
Thank you guys, I appreciate it :o

_________________
Some assembly required,
Brain sold separately...
Top
 Profile

ScottMellor
PostPosted: Thu Apr 26, 2012 5:30 pm
Offline
Friend
Friend

Joined: Mon Apr 09, 2012 11:23 pm
Posts: 16
Joey,
I am inspired by your beautiful work.
Do you install and wire everything on that wooden board and then transfer it en mass into the chassis?
Scott
Top
 Profile

basicbilly
PostPosted: Thu Apr 26, 2012 5:48 pm
Offline
Friend
Friend

Joined: Thu Jul 09, 2009 3:21 pm
Posts: 29
Location: Lake havasu city,AZ.
You would need to use bottom mount tube sockets, the rest should be fine.
Top
 Profile

coco
PostPosted: Fri Apr 27, 2012 2:36 pm
Offline
Holy Ghost
Holy Ghost
User avatar

Joined: Sun Mar 13, 2005 4:10 pm
Posts: 7519
Location: Canada
basicbilly wrote:
You would need to use bottom mount tube sockets, the rest should be fine.


Yes, but our sockets are top mounted. They would need to be widened a bit to fit. Or get bottom mounted.

_________________
Stephen
Web: www.trinityamps.com. Facebook: facebook.com/trinityamps. Twitter: @trinityamps
Top
 Profile

ScottMellor
PostPosted: Fri Apr 27, 2012 3:24 pm
Offline
Friend
Friend

Joined: Mon Apr 09, 2012 11:23 pm
Posts: 16
I'll wire the tube sockets in place and maybe do the rest with a jig.
Top
 Profile

basicbilly
PostPosted: Fri Apr 27, 2012 5:22 pm
Offline
Friend
Friend

Joined: Thu Jul 09, 2009 3:21 pm
Posts: 29
Location: Lake havasu city,AZ.
sorry guys I meant top mounted ! I anted to do the jig but found I didn't need to.I googled images

and followed those, there just aint that much wiring, save the trannys for last !
Top
 Profile

basicbilly
PostPosted: Fri Apr 27, 2012 5:22 pm
Offline
Friend
Friend

Joined: Thu Jul 09, 2009 3:21 pm
Posts: 29
Location: Lake havasu city,AZ.
sorry guys I meant top mounted ! I anted to do the jig but found I didn't need to.I googled images

and followed those, there just aint that much wiring, save the trannys for last !
Top
 Profile

Ernie R
PostPosted: Sat Apr 28, 2012 2:07 am
Offline
Friend
Friend

Joined: Wed Jun 29, 2011 6:45 pm
Posts: 48
:)
joeyvelour wrote:
Thanks Stephen, no mods needed for this thing! I played it in my friend's studio for about 5 hours yesterday and I think I saw a tear running down his face when I loaded it back in my car :P I may have to build another one!!


who wouldn't want a special amp built by a special guy ... :) Wow, you're the greatest and probably just as great on the neck of a guitar too... :)
Top
 Profile

joeyvelour
PostPosted: Sun Apr 29, 2012 4:05 pm
Offline
Experienced
Experienced

Joined: Fri Mar 14, 2008 12:05 pm
Posts: 432
Location: Massachusetts
ScottMellor wrote:
Joey,
I am inspired by your beautiful work.
Do you install and wire everything on that wooden board and then transfer it en mass into the chassis?
Scott


Thanks Scott :D

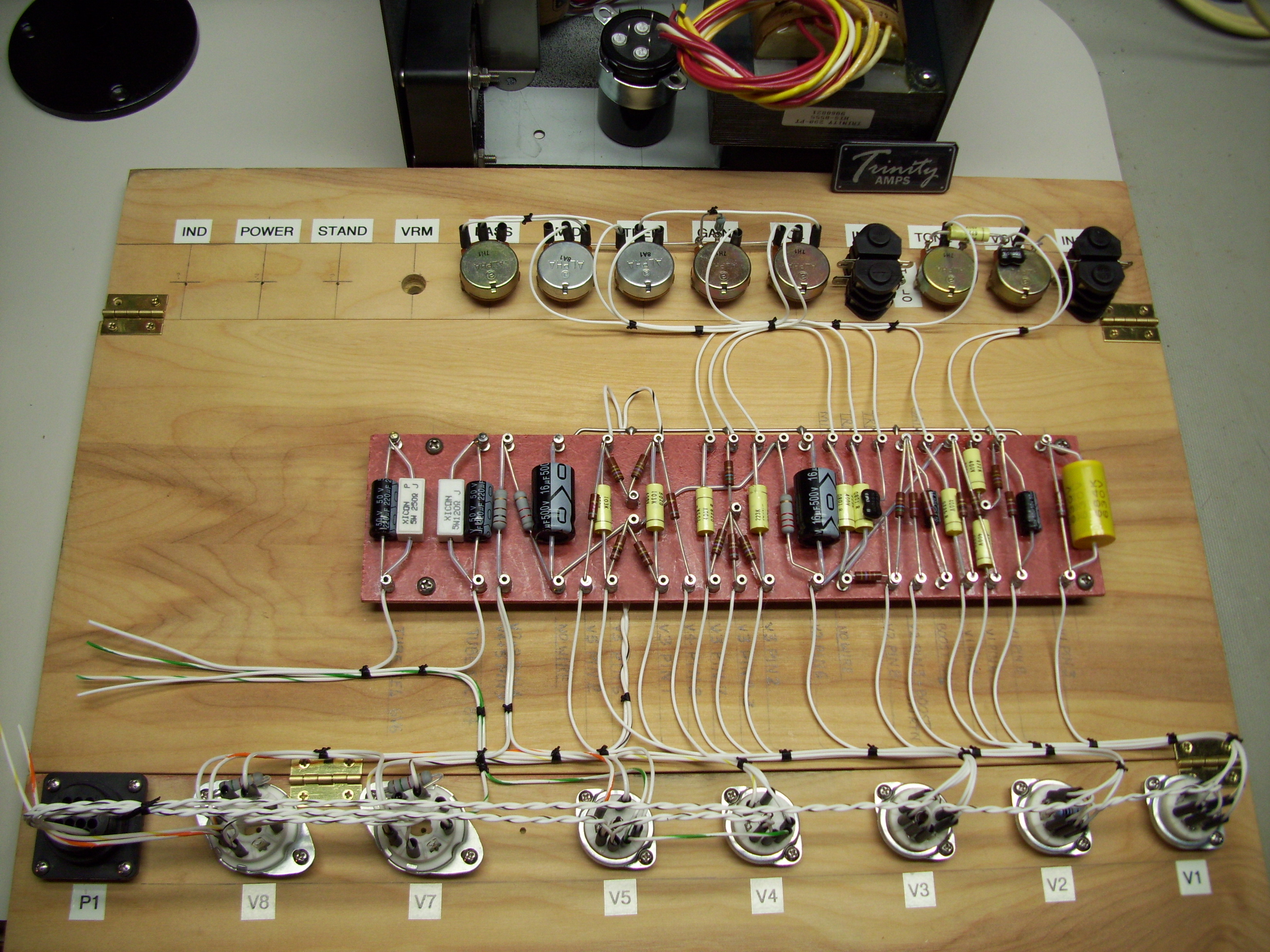

Everything I possibly can gets routed and soldered on the build fixture prior to ever seeing a chassis. The tube sockets do have to be bottom mounted. The sockets I'm using here can be top or bottom mounted, and fit the same panel cutout and dimensions as a standard chassis with no mods. Everything besides the transformers can be done in advance and folded into the chassis in one piece. I have a solution for prewiring the transformers as well, but it's not really worth it for those last few wires IMO, unless for some reason I wanted to test the amp on the jig first as well. Working on a fixture gives me way better control, I could make a thousand of these amps and they will all be identical, plus it saves my fingers for playing!! I used this same approach on my 18 watt as well...!
