dr jim
 Post subject: Power supply test 240V
PostPosted: Sat Feb 27, 2016 3:51 am
Offline
Friend
Friend

Joined: Wed Feb 03, 2016 3:22 pm
Posts: 21
Just wired up transformer, but when running the test I'm getting 640v not 580v on the rectifier socket. All other voltages are correct.
Top
 Profile

kurtlives
PostPosted: Sat Feb 27, 2016 9:20 am
Offline
Expert
Expert
User avatar

Joined: Sun Feb 17, 2008 4:47 pm
Posts: 960
Location: Toronto, Canada.
It will go down when you attach the rest of the circuit.

Maybe your wall voltage is a bit higher than 240V.

_________________
http://pdfelectronics.com
Top
 Profile

coco
PostPosted: Thu Mar 03, 2016 10:09 am
Offline
Holy Ghost
Holy Ghost
User avatar

Joined: Sun Mar 13, 2005 4:10 pm
Posts: 7519
Location: Canada
Voltages are loaded voltages, not unloaded. See with tubes installed

_________________
Stephen
Web: www.trinityamps.com. Facebook: facebook.com/trinityamps. Twitter: @trinityamps
Top
 Profile

dr jim
PostPosted: Sat Mar 12, 2016 2:56 am
Offline
Friend
Friend

Joined: Wed Feb 03, 2016 3:22 pm
Posts: 21
Amp is finished, but still reading 640v across rectifier and B+ is 370V. Amp sounds quite brash and muddy when turned up but can't say I've got that far as its so loud!!! Would the higher readings have an affect on this?
Top
 Profile

kurtlives
PostPosted: Sat Mar 12, 2016 10:50 am
Offline
Expert
Expert
User avatar

Joined: Sun Feb 17, 2008 4:47 pm
Posts: 960
Location: Toronto, Canada.
Probably something else

Post some pictures

_________________
http://pdfelectronics.com
Top
 Profile

dr jim
PostPosted: Sun Mar 13, 2016 2:38 am
Offline
Friend
Friend

Joined: Wed Feb 03, 2016 3:22 pm
Posts: 21

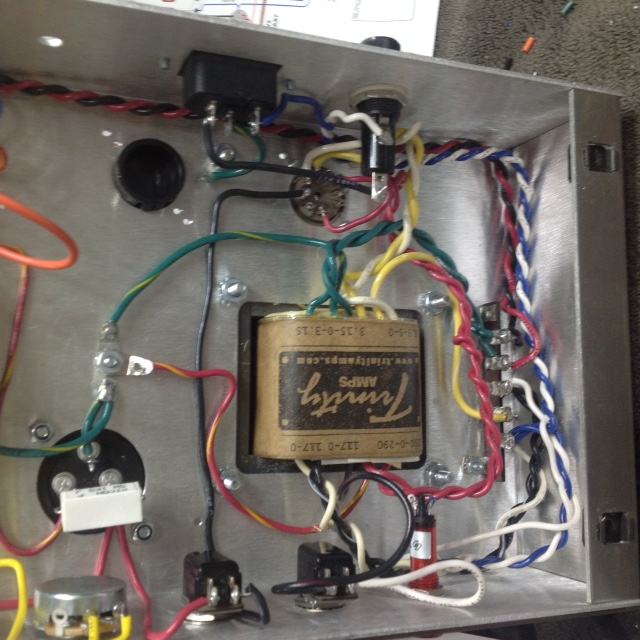

Wiring is per instructions for 240v. Wire for on/off switch left a bit long as VRM is yet to be installed.


Attachments:
IMG_0795.JPG [ 152.1 KiB | Viewed 6176 times ]
