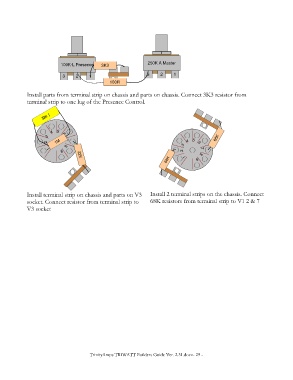

Page 29 - Triwatt Custom Lead Amp Builder's Guide

1M-A Tone
100K-L Presence 3K3 250K A Master
1M-A Tone
3 2 1 3 2 1
100R

Install parts from terminal strip on chassis and parts on chassis. Connect 3K3 resistor from
terminal strip to one lug of the Presence Control.

22n |

3 4 5 6 68K
2 1M 7 4 5 6
3
8
1 7
2 8
9
68K 1 9
22K

Install terminal strip on chassis and parts on V3 Install 2 terminal strips on the chassis. Connect
socket. Connect resistor from terminal strip to 68K resistors from terminal strip to V1 2 & 7
V3 socket

TrinityAmps TRIWATT Builders Guide Ver. 2.31.docx- 29 -
